SIW-Based Input-Reflectionless Filter/Filtenna Using Complementary-Diplexer Architectures

SIW-Based Input-Reflectionless Filter/Filtenna Using Complementary-Diplexer Architectures

Abstract
DOI: 10.1109/TMTT.2025.3532037   IEEEXplore: https://ieeexplore.ieee.org/document/10856682
Device
Input-reflectionless filter/filtenna on substrate-integrated-waveguide (SIW) technology based on complementary-diplexer topologies
Spectrum
10 GHz proof of concept
Novelty

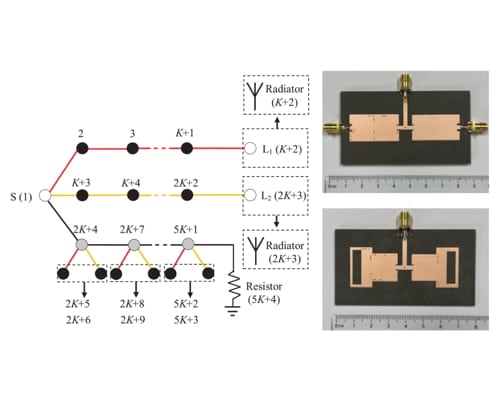

The design methodology begins with a synthesized coupling matrix, develops a dimensional physical design from the couplings, and replaces the last resonator of the bandpass channel with a radiator for an absorptive SIW-based RF filter-antenna, or filtenna. A third-order bandpass filter and filtenna, a second-order diplexer, and a dual-band filtenna, all desigfned with this methodology, are demonstrated in this article.
Application
This novel class of RF filtenna device finds potential application in almost any communications device where reduced size and loss are key performance requirements.
Performance
47.5 R/O (ratio of reflectionless range to operational BW) for a single-layer SIW filter/diplexer, 18.06 R/O for a double-layer SIW filter/diplexer far exceeds performance of devices derived by other design methodologies. 27.27 R/G (ratio of reflectionless and 3dB gain BWs) for a single slot reflectionless antenna far exceeds performance of reported single-band reflectionless antennas; 11.6 R/G for a dual-slot reflectionless antenna. No dual-band input reflectionless antenna has been previously reported to the authors' knowledge.
