DOI: 10.1109/TMTT.2025.3625736   IEEEXplore: https://ieeexplore.ieee.org/document/11274413

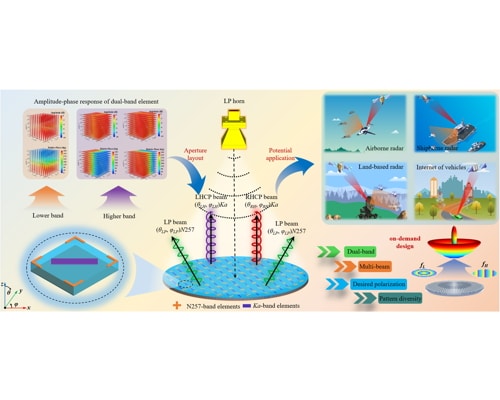

Dual-band millimeter-wave (mmWave) metasurface with arbitrary multibeam, desired polarization including linearly/circularly polarized modes, and pattern diversity.

28 GHz (N257 band), 26.5 – 40 GHz (Ka band)

The proposed design method enables the dual-band metasurface to achieve the desired radiation characteristics with a single LP excitation port to enhance the design’s integration level. The method offers continuous phase compensation across both bands, with the functions of each band designed independently. The method can realize the fusion design of LP and CP modes, which can effectively improve the polarization multiplexing ability for various information transmission modes.

Active phased arrays employed in ship-borne and air-borne radar systems capable of high-speed beam scanning and multitarget tracking.

In the Ka band: 21.68 dBic (LHCP) and 23.92 dBic (RHCP) peak gain; 24.93% peak aperture efficiency.
