510-Gbps 322-GHz Photonics-Aided Terahertz Wireless Transmission System With MIMO Embedded Adaptive Phase Recovery Equalizer

510-Gbps 322-GHz Photonics-Aided Terahertz Wireless Transmission System With MIMO Embedded Adaptive Phase Recovery Equalizer

Abstract
DOI: 10.1109/TMTT.2024.3496292   IEEEXplore: https://ieeexplore.ieee.org/document/10761971
Device
2×2 MIMO PDM photonics-aided THz wireless transmission system with a MIMO equalizer with novel DSP.
Spectrum
322 GHz
Novelty
A 2x2 multiple input multiple output phase division multiplex (MIMO PDM) architecture is implemented with a sophisticated MIMO equalizer with integrated independent channel processing (ICP) and embedded adaptive phase recovery (eAPR) to mitigate I/Q crosstalk and other impairments and improve input power sensitivity.
Application

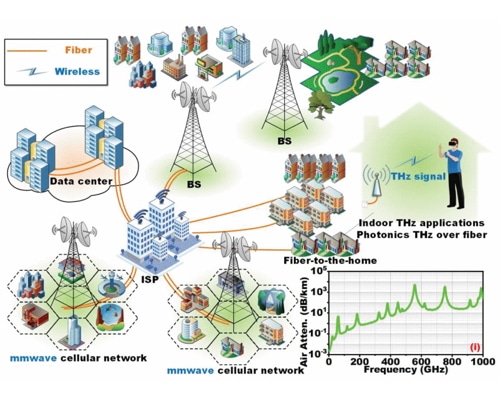

High-speed THz-wave wireless transmission on the user side supporting high bandwidth indoor mobile applications, such as digital twins, virtual reality (VR), and ultrahigh definition videos.
Performance
60-GBaud probabilistically shaped (PS)-64QAM signal transmission demonstrated over 20-km fiber and 3-m THz wave; 510 Gbps per wavelength achieved for THz-wave transmission with PS signals.
